High precision and multi range Battery tester

CT-4008Tn-5V12A-164/S1(3_Ranges)

High precision and multi range Battery tester

CT-4008Tn-5V12A-204n is Neware one of the best selling models which is widely used in cell manufacturers, universities and labs worldwide. It's great for testing different sizes of cylindrical and pouch cells. Neware has launched new CT-4008Tn-5V12A-204n with three output current ranges which can improve the testing accuracy based on varying charging/discharging current. Each CT-4008Tn-5V12A-204n has 8 channels, and each channel is independent. Working with Neware powerful software, it can be your best partner for your daily test.

Product Description

CT-4008Tn-5V12A-204n

High precision and multi range Battery tester

CT-4008Tn-5V12A-204n is Neware one of the best selling models which is widely used in cell manufacturers, universities and labs worldwide. It's great for testing different sizes of cylindrical and pouch cells. Neware has launched new CT-4008Tn-5V12A-204n with three output current ranges which can improve the testing accuracy based on varying charging/discharging current. Each CT-4008Tn-5V12A-204n has 8 channels, and each channel is independent. Working with Neware powerful software, it can be your best partner for your daily test.

Specs

Keep improving and lead the market.

500μs

Min. Pulse Width

≤1ms

Response Time

0.05%

Accuracy

DCIR

Test

3 Range

10/100Hz

Data Acquisition
Frequency

Modular, minimum floor area

BTS 4000

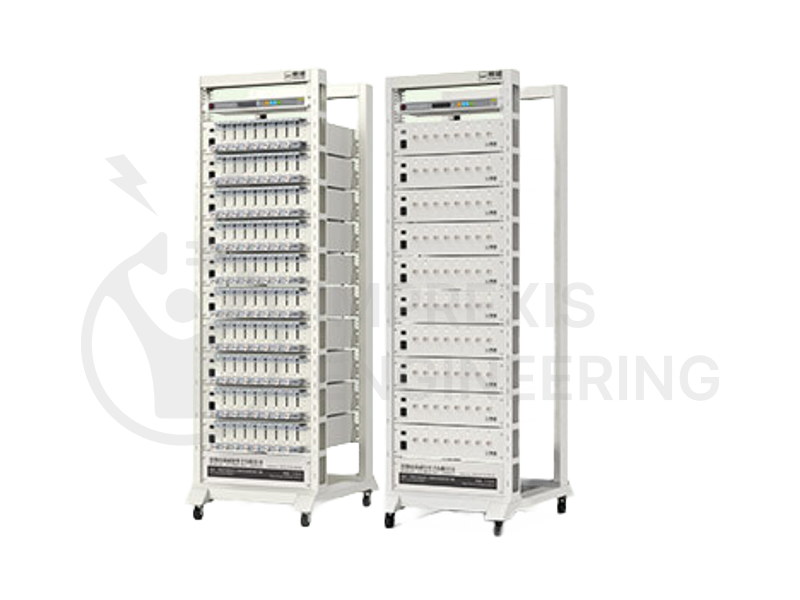

Each gantry can place up to 10 units and 1 middle machine.

Appreciate it from different angles

All angles seems perfect.

It can be customized on demand, and you can place the most suitable number of
units on the gantry.

Cooling System

Safe and Efficient

Air intake on the right or left side, but outlet on the back.

Plug the cable into the network interface and switch on the power

Turn back and start to test

On the back, you can see the RS-485 interface and AC power supply, which connect
the middle computer and BTS server via the cable.

Discover the difference between 5V6A and 5V12A

When the appearance and dimensions are the same, it can be distinguished only from aerial plug-in and ventilation
design.

5V6A uses one fan, but 5V12A uses two.

Air intake on the right or left side

The inventive heat-radiating system is practical and feasible and can increase heat-radiating efficiency and space utilizaion rate. Each CT-4008Tn-5V12A supports from one to eight test channels, depend on the application.Each test channel is operated independently. This allows different tests to be performed on different test channels simultaneously, with tests being started independently, or in a block.

Square Air Outlet

Compared with 5V6A, 5V12A uses two square fans for dissipating heat. Industrial design
is delicate.

CT-4008Tn-5V12A battery testing system combined one middle machine, which can work with up to 10 sets of 5V12A equipments. What's more, you can use one gantry to DIY a new equipment. The most surprising thing is that it can save much more floor space.

Integrated operation and collaborative work through BTS upper
computer control system

NEWARE battery charge and discharge test system realizes integrated
operation and collaborative work through BTS upper computer control
system, so as to maximize the battery characteristics and functions.

Software

Essential components

Download Neware BTS Software

dQ/dV

dQ/dV differential capacity curve: the peak on the curve indicates that there is a voltage plateau on the charge and discharge curve, and different peaks represent different electrochemical reactions.

Conditions Switches

Battery testing steps need to be estimated for several conditions according to different operations during testing applications; Conditions switches meet requirements for multi-exits programming types. “And””or” logic operation, “≥”, ”≤”, ”=” comparatively calculate; Time duration ”t”, can achieve control requirements for special testing. Every step supports 5 condition switches; Support multi-exits, go to any steps, achieve more flexible process control.

Segment-Record Conditions

Data record settings for voltage, current and time are supported; 3 segment-record conditions can be set for each step; Every segment can be set: ΔT, ΔV and ΔI .

Control peripheral equipment by communication

BTS Server come true the peripheral equipment (Battery tester & Automation) communication control via switch.

EDLC Testing

The unit of Q is Coulomb, 1 Coulomb = 1A * 1s = 1As; 1Ah = 3600 As(Amp Second); Work voltage U = Charge upper limited voltage - Discharge bottom limited voltage; Working voltage can be set and the EDLC coulomb could be calculated automatically by the software.

Application

Good news for lithium battery manufacturers

Polymer Pouch Cell

Using polymer clamps to test, such as 6545 polymer
clamp.

Cylindrical Cell

The upper and lower clamps of Neware 5V6A and
5V12A tester can move up and down accurately
according to the scale marked on the left and right
sides. The cylinder battery is tested between the upper
and lower clamps.
